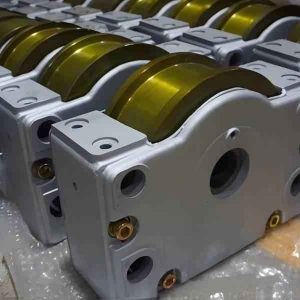

• Crane Wheel Blocks

    Crane Wheel Blocks Specifications:

    • Sizes: Φ112, Φ125, Φ160, Φ200, Φ250, Φ315, Φ400, Φ500
    • Wheel Material: QT700
    • Wheel Types: Double flange, single flange, flangeless, grooved flange, polyurethane-coated
    • Mounting Options: Top mounting, pin mounting, single-side mounting, end mounting
    • Custom Options: Non-standard customization available; we can manufacture according to your provided drawings.
    Read moreDone

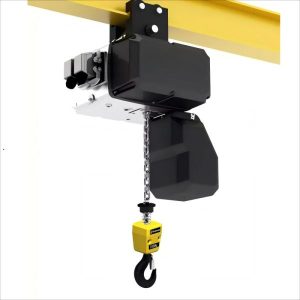

  • Electric Chain Hoist

    Electric Chain Hoist Main Features
    • Compact and lightweight for easy operation.
    • Can be installed on suspended I-beams, curved tracks, jib crane guide rails, or fixed lifting points for handling heavy loads.
    • Utilizes chain drive for high efficiency and simple maintenance.
    • Equipped with an independent gearbox system and a long-lasting oil-bath lubrication system.
    • Features disc-type DC electromagnetic braking for large braking torque, smooth operation, fast response, and low noise.
    Read moreDone

  • FEM Double girder crane end carriages

    Specifications of FEM Double Girder Crane End Carriages
    • Models: EC14, EC16, EC20, EC25, EC32, EC20B, EC25B, EC32B, EC40B, EC50B
    • Wheel Material: QT700, 40Cr
    • Wheel Connection Types: Internal splines, Cylindrical shafts
    • Wheel Groove Width: Determined by the rail model
    • Custom Design: Custom manufacturing available based on provided drawings to meet specific dimensions.
    Read moreDone

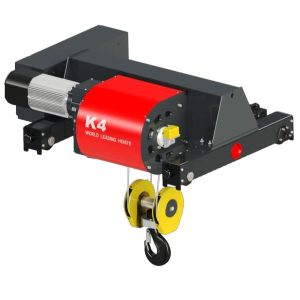

  • FEM Double Girder Wire Rope Electric Hoist

    Specifications
    • Capacity Options: 2t, 3.2t, 5t, 6.3t, 8t, 10t, 12.5t, 16t, 20t, 25t, 32t, 40t, 50t, 63t, 80t
    • Duty Classification: M4, M5, M6
    • Lifting Height Range: 6m, 9m, 12m, 15m, 18m, 24m, 30m, and beyond
    Read moreDone

  • FEM Single girder crane end carriages

    Specifications of FEM Single Girder Crane End Carriages
    • Models: EC11, EC14, EC16, EC20, EC25
    • Wheel Material: QT700 , 40Cr
    • Wheel Connection Types:
      • Internal splines
      • Cylindrical shafts
    • Wheel Groove Width: Determined based on the rail model
    • Custom Design: Non-standard customization available. You can provide drawings, and we will manufacture according to the specified dimensions.
    Read moreDone

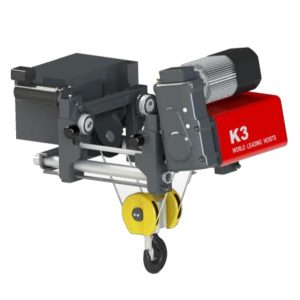

  • FEM Single Girder Wire Rope Electric Hoist

    Specifications
    • Capacity Options: 2t, 3.2t, 5t, 6.3t, 8t, 10t, 12.5t
    • Duty Classification: M3, M4, M5, M6
    • Lifting Height Range: 6m, 9m, 12m, 15m, 18m
    Read moreDone

  • FEM standard crane drum

    FEM Standard Crane Drum Parameters:

    • Specifications: Φ300×1000, Φ400×1500, Φ500×1500, Φ650×2000, Φ800×2000, Φ800×3600, Φ1000×3600
    • Drum Material:  Q235B, Q355B，Q355E
    • Drum Manufacturing Process: Casting, steel plate rolling, seamless steel pipe
    • Drum Groove Dimensions: Determined based on the diameter of the steel wire rope
    • Non-standard Customization: Customization available based on your provided drawings. We will manufacture according to the dimensions in the drawings.
    Read moreDone

  • FEM standard crane hook

    FEM standard crane hook parameters:

    • Specifications: 3.2t, 5t, 10t, 16t, 20t, 32t, 50t, 75t, 100t, 125t, 160t, 200t, 320t, 400t, 500t
    • Working level: M5, M6, M7,
    • Hook material: 35CrMo (≤100t), 34Cr2Ni2Mo (＞100t)
    • Hook pulley assembly form: straight pulley, inclined pulley
    • Hook type: forged single hook, forged double hook
    Read moreDone

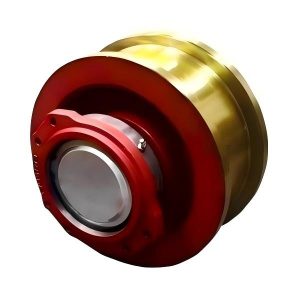

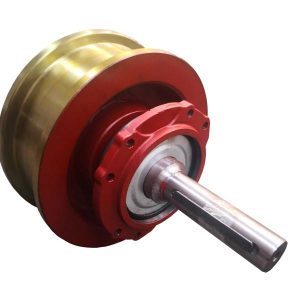

  • FEM standard crane wheel

    FEM Standard Crane Wheel Parameters:

    • Specifications: Φ110, Φ125, Φ140, Φ160, Φ200, Φ250, Φ320, Φ400, Φ500, Φ630
    • Wheel Material: QT700, 40Cr Forged
    • Wheel Type: Double-flange, Single-flange, No-flange
    • Wheel Connection Type: Internal spline, Cylindrical shaft
    • Wheel Groove Width: Determined based on the track model
    • Custom Manufacturing: Custom-made based on provided drawings, with dimensions as per customer specifications
    Read moreDone

  • FEM Suspension crane end carriages

    Specifications of FEM Suspension  crane end carriages
    • Models:DU10,DU13,DU16
    • Wheel Material: 40Cr
    • Wheel Connection Types: gear
    • Matchable track form: I-beam, H-beam
    Read moreDone

  • Travelling machinery gear motors

    • The motor features a stepless speed range of 5-120 Hz, delivering smooth torque at low speeds without any creeping.
    • It is equipped with a high-performance brake that can last up to 1.5 million cycles.
    • Standard thermal switch provides thermal protection.
    • Standard heavy-duty connector plug for quick connection and high safety.
    Read moreDone
