• Crane electrical control cabinet

    Control cabinet,Power cabinet,Signal cabinet,Special cabinet,Data acquisition cabinet,Crane electrical control cabinet,electrical control cabinet,crane control cabinet

    Read moreDone

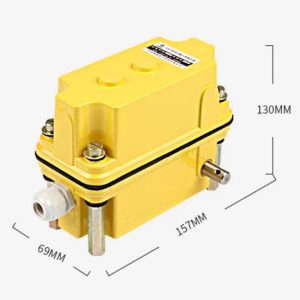

  • Crane limit switch

    Main parameters of DXZ Crane limit switch:
    Ambient temperature: The operating temperature range is -40℃ to +55℃, and the relative humidity is not more than 90%.
    Transmission ratio: 1:13, 1:17, 1:46, 1:60, 1:78, 1:210, 1:274, 1:960
    Repeat positioning accuracy: The angular error of the memory cam is not more than 0.005 radians (about 0.3 degrees).
    Rated voltage: The rated working voltage is AC 125-250V or DC 30V.
    Rated current: The rated working current is 6A (AC) or 4A (DC).

    Read moreDone

  • Crane overload limiter

    Main parameters:
    • Accuracy ≤5%F.S.
    • 90% warning, 105% alarm
    • 130% immediate control, output a set of relay contacts
    • Capacity 10A, 380V
    • Power supply voltage AC380V or 220V/50Hz
    • Ambient temperature -20～+60℃/90%RH
    • Protection level sensor IP65,
    • Instrument IP42
    Read moreDone

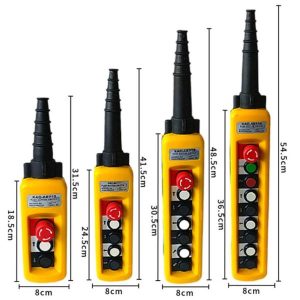

  • Crane pendant controller

    Specifications of Crane Pendant Controllers
    • Button Count: 2, 4, or 6 buttons.
    • Protection Level: IP65.
    • Control Voltage: 36V.
    • Operating Temperature Range: -40°C to +85°C.
    Read moreDone

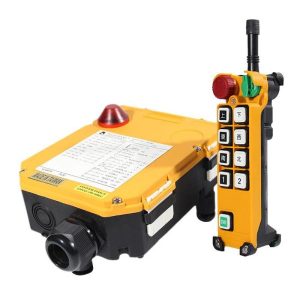

  • Crane remote controller

    Specifications of the Crane Remote Controller
    • Model Options: F24-6D, F24-8D, F24-10D, F24-12D, F24-60
    • Button Options: 6, 8, 10, 12 buttons, or joystick control
    • Protection Rating: IP65
    • Frequency Range: VHF: 310-331 MHz; UHF: 425-446 MHz
    • Receiver Power Options: 24V, 36V, 220V, 380V (optional)
    • Operating Temperature: -40°C to +85°C
    • Control Distance: Up to 100m in open environments
    Read moreDone

  • Heavy Duty Aviation Connector

    The HE Heavy Duty Aviation Connector, also known as the aviation plug or quick connector, is a versatile and robust solution for electrical and signal connections in industrial equipment, including cranes.

    Read moreDone

  • I-beam cable trolley

    GHC I-beam Cable Trolley Key Parameters:
    • Models: GHC-I, GHC-II, GHC-III, GHC-IV, GHC-V
    • Walking wheel diameters: Φ50, Φ63, Φ80
    • Load capacity: 50~150 kg
    • Compatible I-beam sizes: 10#, 12#, 14#, 16#
    Read moreDone

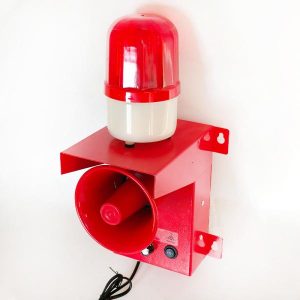

  • Sound and light alarm

    Features of sound and light alarm：

    • High-Brightness LED Light Source
    • Loud Sound Alerts
    • Multi-Voltage Support
    • Rotating Warning Light (Optional)
    • High Protection Rating
    • Long Lifespan
    Read moreDone
