• Brake wheel drum gear coupling

    The parameters for the brake wheel drum gear coupling are as follows:

    • Maximum Allowable Torque: 630 Nm to 125,000 Nm
    • Maximum Speed: 4000 rpm to 950 rpm
    • Brake Wheel Diameter: ∅160, ∅200, ∅250, ∅300, ∅315, ∅400, ∅500, ∅600, ∅630, ∅700, ∅800
    • Coupling Type: NGCL, NGCLZ
    • Custom Non-Standard Design: Customizations are available based on provided drawings; we can manufacture according to the specified dimensions in your drawings.
    Read moreDone

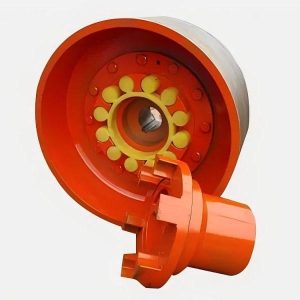

  • Brake wheel plum elastic coupling

    MLLZ Brake Wheel Plum Elastic Coupling Specifications:

    • Maximum allowable torque: 250 Nm to 31,500 Nm
    • Maximum speed: 4250 r/min to 950 r/min
    • Shaft hole diameter: ∅25 to ∅200
    • Brake wheel diameter: ∅160, ∅200, ∅250, ∅300, ∅315, ∅400, ∅500, ∅600, ∅630, ∅700, ∅800
    • Custom specifications: We can manufacture the coupling based on your provided drawings.
    Read moreDone

  • Cardan Shaft Coupling

    Cardan Shaft Coupling Parameters:

    • Maximum Allowable Torque: 2.5 kN.m to 1000 kN.m
    • Shaft Deflection Angle: ≤ 25°, ≤ 15°
    • Flange Diameter: ∅100 to ∅550
    • Length: 405 mm to 2300 mm
    • Length Extension Range: 55 mm to 240 mm
    Read moreDone

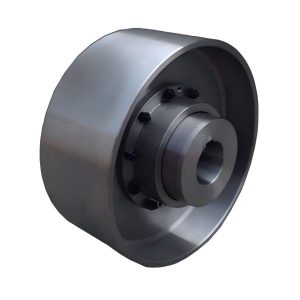

  • Crane brake wheel coupling

    Crane Brake Wheel Coupling Parameters:

    • Maximum Allowable Torque: 630 Nm to 125,000 Nm
    • Maximum Speed: 4000 rpm to 950 rpm
    • Brake Wheel Diameter: ∅160, ∅200, ∅250, ∅300, ∅315, ∅400, ∅500, ∅600, ∅630, ∅700, ∅800
    • Coupling Material: ZG430-640, 45 steel
    • Coupling Type: Brake wheel with half-tooth coupling
    • Custom Options: You can provide your own drawings, and we will manufacture according to the specified dimensions.
    Read moreDone

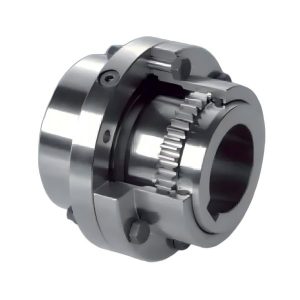

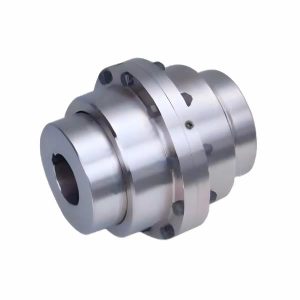

  • Crane gear couplings

    Crane Gear Couplings Parameters:

    • Maximum Allowable Torque: 710 Nm to 1,000,000 Nm
    • Maximum Speed: 7100 rpm to 700 rpm
    • Coupling Material: ZG430-640, 45 steel
    • Coupling Types: Full-tooth couplings and half-tooth couplings
    • Custom Options: You can provide your own drawings, and we will manufacture according to the specified dimensions.
    Read moreDone

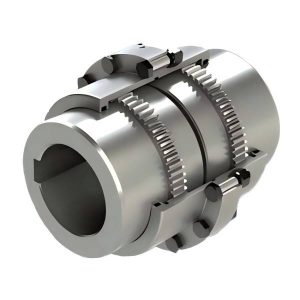

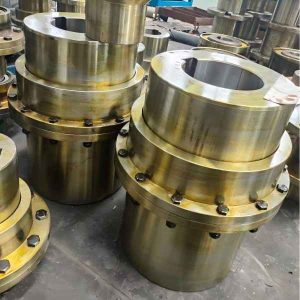

  • Drum gear couplings

    Parameters for Drum Gear Couplings:

    • Maximum Allowable Torque: 0.63 kN·m to 5600 kN·m
    • Maximum Rotational Speed: 4000 rpm to 950 rpm
    • Coupling Material: ZG430-640, 45 steel
    • Coupling Models: GⅡCL, GⅡCLZ
    • Custom Options: Non-standard customization is available; you can provide drawings, and we will manufacture according to the specified dimensions.
    Read moreDone

  • Plum blossom elastic coupling

    ML Plum Blossom Elastic Coupling Parameters:

    • Maximum allowable torque: 630 Nm to 125,000 Nm
    • Maximum speed: 1,350 r/min to 15,300 r/min
    • Shaft hole diameter: ∅12 to ∅200
    • Custom non-standard sizes: Available based on provided drawings, with manufacturing according to the dimensions on the drawings.
    Read moreDone

  • WZL drum coupling

    WZL Drum Coupling Parameters:

    • Maximum allowable torque: 2.5 KN·m to 1490 KN·m
    • Shaft angle deviation: ≤ 3°
    • Working levels: M3, M4, M5, M6, M7, M8
    • Spline dimensions: 15z × 3m to 56z × 10m
    Read moreDone
