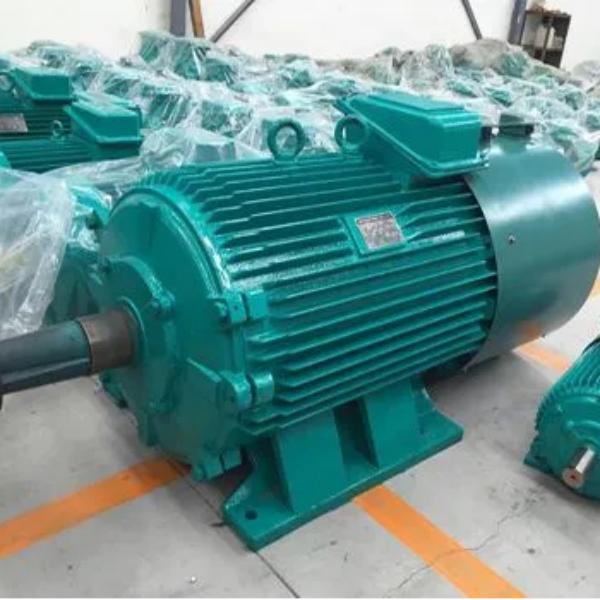

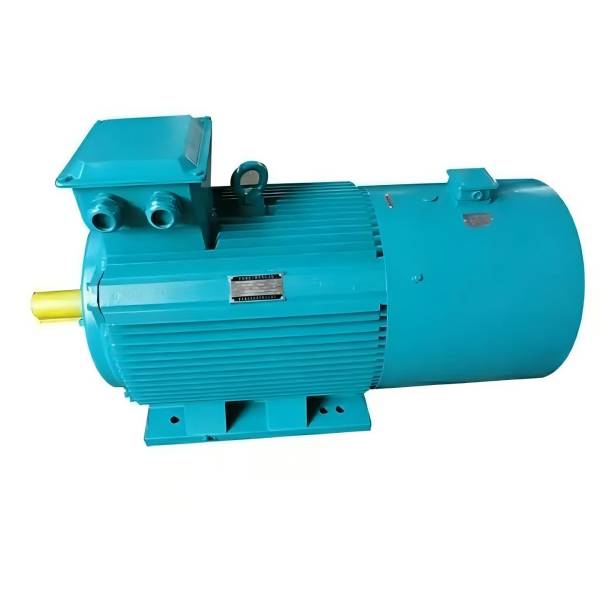

YZP crane motor
YZP crane motor parameters:
- Specifications: YZP112M, YZP132M, YZP160M, YZP160L, YZP180L, YZP200L, YZP225M, YZP250M, YZP280S, YZP280M, YZP315S, YZP315M, YZP355M, YZP355L, YZP400L.
- Motor speed: 1500r/min, 1000r/min, 750r/min, 600r/min
- Insulation class: F, H
- Protection class: IP44, IP54

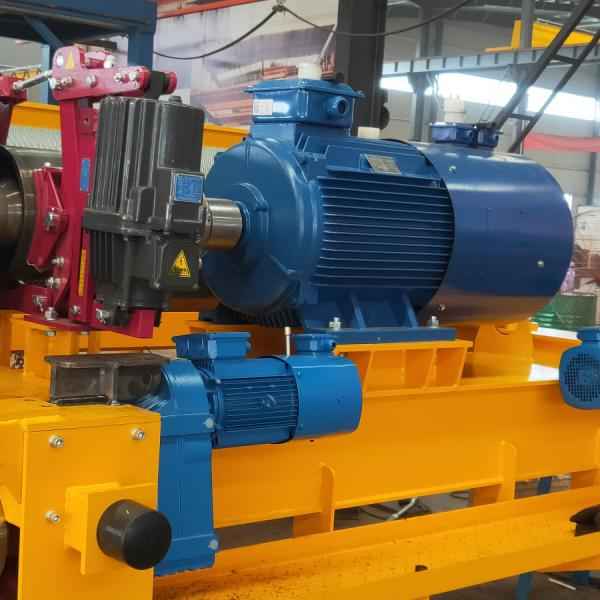

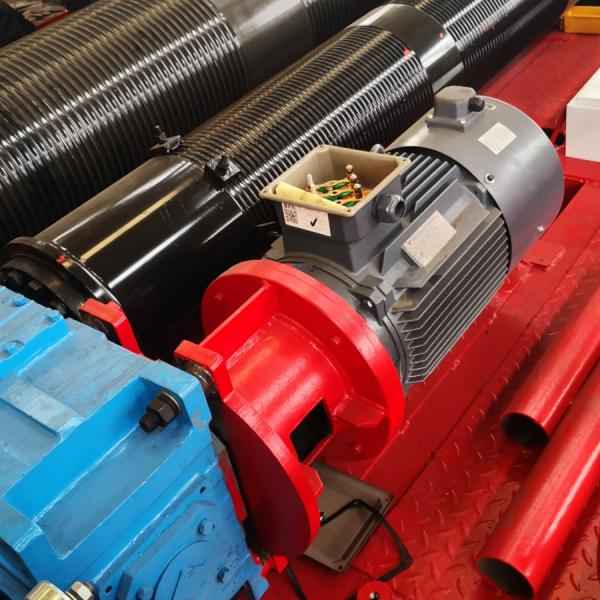

Industries and Applications for YZP Crane Motor
- The YZP crane motor are primarily designed for driving various types of lifting machinery and similar equipment. Featuring a wide speed regulation range, high overload capacity, and exceptional mechanical strength, these motors are particularly suited for short-term or intermittent operation, frequent starting and stopping, occasional overloading, and applications subjected to significant vibration and impact.
- The insulation class of the motor is divided into Class F and Class H. Class F is suitable for general environments where the cooling medium temperature does not exceed 40°C, while Class H is designed for metallurgical sites with cooling medium temperatures up to 60°C. Both types provide identical electrical performance.
- These motors also possess excellent sealing properties. In general environments, the motor’s protection class is IP44, while for metallurgical environments, the motor’s enclosure protection class is IP54.
Power Ratings for YZP Crane Motor
| Duty Type | S3 6 starts/hour | |||||||||||||||||||
| Load duration | 15% | 25% | 40% | 60% | 100% | |||||||||||||||
| Speed (r/min) Power (kw) |
1500 | 1000 | 750 | 600 | 1500 | 1000 | 750 | 600 | 1500 | 1000 | 750 | 600 | 1500 | 1000 | 750 | 600 | 1500 | 1000 | 750 | 600 |
| YZP112M1 | 4.0 | 2.2 | 3.3 | 1.7 | 3.0 | 1.5 | 2.6 | 1.3 | 2.0 | 1.1 | ||||||||||
| YZP112M2 | 5.0 | 3.0 | 4.5 | 2.5 | 4.0 | 2.2 | 3.5 | 1.8 | 3.0 | 1.5 | ||||||||||
| YZP 132M1 | 7.5 | 4.0 | 6.3 | 3.3 | 5.5 | 3.0 | 4.8 | 2.6 | 4.0 | 2.0 | ||||||||||
| YZP 132M2 | 9.0 | 5.4 | 7.0 | 4.7 | 6.3 | 4.0 | 5.3 | 3.2 | 4.8 | 2.5 | ||||||||||
| YZP 160M1 | 10.0 | 7.5 | 8.5 | 6.3 | 7.5 | 5.5 | 6.3 | 4.8 | 5.0 | 4.0 | ||||||||||
| YZP 160M2 | 14.0 | 10.0 | 13.0 | 8.5 | 11.0 | 7.5 | 9.5 | 6.3 | 8.8 | 5.5 | ||||||||||
| YZP 160L | 20.0 | 15.0 | 11.0 | 17.0 | 13.0 | 8.5 | 15.0 | 11.0 | 7.5 | 13.0 | 9.0 | 6.3 | 11.0 | 7.5 | 5.5 | |||||
| YZP 180L | 29.0 | 20.0 | 15.0 | 25.0 | 17.0 | 13.0 | 22.0 | 15.0 | 11.0 | 19.0 | 13.0 | 9.5 | 16.0 | 11.0 | 8.0 | |||||
| YZP 200L | 39.0 | 31.0 | 22.0 | 35.0 | 25.0 | 17.0 | 30.0 | 22.0 | 15.0 | 26.0 | 19.0 | 13.0 | 22.0 | 16.0 | 11.0 | |||||
| YZP 225M | 50.0 | 40.0 | 30.0 | 42.0 | 35.0 | 26.0 | 37.0 | 30.0 | 22.0 | 32.0 | 25.0 | 19.0 | 27.0 | 22.0 | 16.0 | |||||
| YZP 250M1 | 60.0 | 50.0 | 42.0 | 52.0 | 42.0 | 36.0 | 45.0 | 37.0 | 30.0 | 39.0 | 32.0 | 26.0 | 33.0 | 27.0 | 22.0 | |||||
| YZP 250M2 | 75.0 | 63.0 | 52.0 | 63.0 | 52.0 | 42.0 | 55.0 | 45.0 | 37.0 | 47.0 | 39.0 | 32.0 | 40.0 | 33.0 | 27.0 | |||||
| YZP 280S1 | 95.0 | 75.0 | 60.0 | 55.0 | 70.0 | 63.0 | 52.0 | 42.0 | 63.0 | 55.0 | 45.0 | 37.0 | 55.0 | 48.0 | 39.0 | 32.0 | 48.0 | 40.0 | 33.0 | 27.0 |
| YZP 280S2 | 115.0 | 85.0 | 85.0 | 70.0 | 75.0 | 63.0 | 63.0 | 53.0 | 55.0 | 46.0 | ||||||||||
| YZP 280M | 120.0 | 100.0 | 75.0 | 63.0 | 100.0 | 85.0 | 63.0 | 52.0 | 90.0 | 75.0 | 55.0 | 45.0 | 75.0 | 63.0 | 47.0 | 39.0 | 65.0 | 55.0 | 40.0 | 33.0 |
| YZP 315S1 | 140.0 | 120.0 | 84.0 | 75.0 | 125.0 | 103.0 | 70.0 | 63.0 | 110.0 | 90.0 | 63.0 | 55.0 | 92.0 | 75.0 | 53.0 | 47.0 | 80.0 | 65. | 46.0 | 40.0 |
| YZP 315S2 | 100.0 | 84.0 | 85.0 | 70.0 | 75.0 | 63.0 | 63.0 | 53.0 | 55.0 | 46.0 | ||||||||||
| YZP 315M | 190.0 | 155.0 | 125.0 | 100.0 | 155.0 | 125.0 | 100.0 | 85.0 | 132.0 | 110.0 | 90.0 | 75.0 | 110.0 | 92.0 | 75.0 | 63.0 | 95.0 | 80.0 | 65.0 | 55.0 |
| YZP 355M | 155.0 | 132.0 | 125.0 | 100.0 | 110.0 | 90.0 | 92.0 | 75.0 | 80.0 | 65.0 | ||||||||||
| YZP 355L1 | 190.0 | 160.0 | 150.0 | 125.0 | 132.0 | 110.0 | 110.0 | 92.0 | 95.0 | 80.0 | ||||||||||
| YZP 355L2 | 225.0 | 185.0 | 185.0 | 150.0 | 160.0 | 132.0 | 132.0 | 110.0 | 115.0 | 95.0 | ||||||||||
| YZP 400L1 | 280.0 | 236.0 | 230.0 | 185.0 | 200.0 | 160.0 | 170.0 | 132.0 | 145.0 | 115.0 | ||||||||||
| YZP 400L2 | 350.0 | 270.0 | 300.0 | 230.0 | 250.0 | 200.0 | 210.0 | 170.0 | 180.0 | 145.0 | ||||||||||
Technical Data Table for YZP Crane Motor
| S3(6starts/hour) | ||||||||||||||||||||||||||
| CDF | 15% | 25% | 40% * | 60% | 100% | |||||||||||||||||||||
| Item | Rated | I1 | n | Rated | I1 | n | Rated | I1 | Ist | Breakdown | no- | n | Rated | I1 | n | Rated | I1 | n | ||||||||
| output | Rated | Speed | output | Rated | Speed | output | Rated | Lock | torquc | load | Speed | output | Rated | Speed | output | Rated | Speed | |||||||||
| current | current | current | rotor | current | current | current | ||||||||||||||||||||
| current | rated | |||||||||||||||||||||||||
| kW | A | r/min | kW | A | r/min | kW | A | A | torquc | A | r/min | kW | A | r/min | kW | A | r/min | |||||||||
| Type | 1500r/min | |||||||||||||||||||||||||
| 112M1 | 4.0 | 9.4 | 1384 | 3.3 | 7.8 | 1410 | 3.0 | 7.2 | 38 | 2.8 | 3.72 | 1419 | 2.6 | 6.7 | 1431 | 2.0 | 5.82 | 1447 | ||||||||
| 112M2 | 5.0 | 11.8 | 1398 | 4.5 | 10.8 | 1477 | 4.0 | 9.5 | 53.4 | 2.8 | 5.1 | 1422 | 3.5 | 8.8 | 1433 | 3.0 | 8.1 | 1443 | ||||||||
| 132M1 | 7.5 | 16.3 | 1419 | 6.3 | 13.9 | 1434 | 5.5 | 13 | 87 | 3.0 | 6.7 | 1444 | 4.8 | 11.6 | 1451 | 4.0 | 10.5 | 1459 | ||||||||
| 132M2 | 9.0 | 19.4 | 1399 | 7.0 | 15.1 | 1427 | 6.3 | 14 | 85 | 2.8 | 6.1 | 1436 | 5.3 | 11.9 | 1447 | 4.8 | 11.1 | 1452 | ||||||||
| 160M1 | 10.0 | 19.8 | 1427 | 8.5 | 17.1 | 1440 | 7.5 | 15 | 110 | 3.2 | 6.1 | 1445 | 6.3 | 13.1 | 1457 | 5.0 | 11 | 1466 | ||||||||
| 160M2 | 14.0 | 27.5 | 1428 | 13.0 | 25.5 | 1434 | 11.0 | 23 | 175 | 3.2 | 7.8 | 1445 | 9.5 | 18.9 | 1454 | 8.8 | 17.9 | 1458 | ||||||||
| 160L | 20.0 | 38.8 | 1429 | 17.0 | 33.4 | 1442 | 15.0 | 30 | 243 | 3.3 | 11.2 | 1445 | 13.0 | 26.1 | 1457 | 11.0 | 22.9 | 1464 | ||||||||
| 180L | 29.0 | 57.5 | 1444 | 25.0 | 50.2 | 1453 | 22.0 | 45 | 335 | 3.2 | 18.7 | 1455 | 19.0 | 40 | 1465 | 16.0 | 35.5 | 1471 | ||||||||
| 200L | 39.0 | 73.9 | 1457 | 35.0 | 67.1 | 1462 | 30.0 | 58 | 485 | 3.2 | 20.1 | 1465 | 26.0 | 50.5 | 1473 | 22.0 | 44.3 | 1477 | ||||||||
| 225M | 50.0 | 94.8 | 1456 | 42.0 | 78.8 | 1464 | 37.0 | 70 | 625 | 3.3 | 24.2 | 1468 | 32.0 | 61.5 | 1473 | 27.0 | 53.7 | 1477 | ||||||||
| 250M1 | 60.0 | 113.8 | 1440 | 52.0 | 95.4 | 1450 | 45.0 | 83.5 | 551 | 2.8 | 19.8 | 1458 | 39.0 | 72.3 | 1464 | 33.0 | 61.5 | 1470 | ||||||||
| 250M2 | 75.0 | 142.3 | 1437 | 63.0 | 115.5 | 1449 | 55.0 | 102 | 669 | 2.6 | 21.6 | 1457 | 47.0 | 76.2 | 1464 | 40.0 | 74.2 | 1469 | ||||||||
| 280S1 | 95.0 | 174.3 | 1460 | 70.0 | 127 | 1472 | 63.0 | 113.1 | 868 | 3.0 | 29.5 | 1475 | 55.0 | 101 | 1478 | 48.0 | 88.1 | 1481 | ||||||||
| 280S2 | 115.0 | 208 | 1458 | 85.0 | 152.5 | 1470 | 75.0 | 135.2 | 1024 | 3.0 | 32.3 | 1475 | 63.0 | 114.4 | 1478 | 55.0 | 101 | 1481 | ||||||||
| 280M | 120.0 | 215.4 | 1464 | 100.0 | 177.5 | 1470 | 90.0 | 162 | 1230 | 3.0 | 36.8 | 1475 | 75.0 | 134.6 | 1478 | 65.0 | 118 | 1481 | ||||||||
| 315S | 140.0 | 253.4 | 1470 | 125.0 | 224 | 1478 | 110.0 | 196 | 1484 | 3.2 | 38.5 | 1483 | 92.0 | 163.6 | 1485 | 80.0 | 142 | 1488 | ||||||||
| 315M | 190.0 | 339.4 | 1470 | 155.0 | 274.3 | 1478 | 132.0 | 235 | 2216 | 3.2 | 54.6 | 1483 | 110.0 | 196.3 | 1485 | 75.0 | 139.2 | 1488 | ||||||||
| 1000r/min | ||||||||||||||||||||||||||
| 112M1 | 2.2 | 5.6 | 908 | 1.7 | 4.5 | 935 | 1.5 | 4.2 | 19.4 | 2.7 | 2.51 | 944 | 1.3 | 3.8 | 952 | 1.1 | 3.6 | 959 | ||||||||
| 112M2 | 3.0 | 7.7 | 900 | 2.5 | 6.4 | 924 | 2.2 | 5.9 | 25.3 | 2.5 | 3.0 | 935 | 1.8 | 5.2 | 948 | 1.5 | 4.7 | 957 | ||||||||
| 132M1 | 4.0 | 9.5 | 941 | 3.3 | 8.0 | 953 | 3.0 | 7.6 | 40.0 | 2.7 | 4.08 | 958 | 2.6 | 6.8 | 964 | 2.0 | 6.0 | 972 | ||||||||
| 132M2 | 5.4 | 12.8 | 949 | 4.7 | 11.2 | 961 | 4.0 | 9.5 | 53.6 | 3.0 | 8.97 | 964 | 3.2 | 8.36 | 969 | 2.5 | 7.38 | 976 | ||||||||
| 160M1 | 7.5 | 17 | 950 | 6.3 | 14.3 | 960 | 5.5 | 12.5 | 70.9 | 2.7 | 4.69 | 966 | 4.8 | 10.8 | 971 | 4.0 | 9.9 | 976 | ||||||||
| 160M2 | 10.0 | 21.2 | 956 | 8.5 | 18.6 | 964 | 7.5 | 16.5 | 110.6 | 2.8 | 6.7 | 969 | 6.3 | 13.9 | 974 | 5.5 | 12.6 | 977 | ||||||||
| 160L | 15.0 | 31.4 | 953 | 13.0 | 27.2 | 960 | 11.0 | 23.6 | 158.2 | 2.8 | 8.73 | 967 | 9.0 | 19.9 | 974 | 7.5 | 17.8 | 978 | ||||||||
| 180L | 20.0 | 42.0 | 964 | 17.0 | 31.6 | 971 | 15.0 | 31.5 | 247.5 | 3.0 | 15.69 | 974 | 13.0 | 28.8 | 978 | 11.0 | 26.6 | 981 | ||||||||
| 200L | 31.0 | 61.5 | 962 | 25.0 | 50.8 | 970 | 22.0 | 45.8 | 402.5 | 3.2 | 20.25 | 974 | 19.0 | 40.6 | 978 | 16.0 | 36.5 | 981 | ||||||||
| 225M | 40.0 | 77.5 | 962 | 35.0 | 67.8 | 968 | 30.0 | 58.8 | 514.1 | 2.8 | 21.66 | 973 | 25.0 | 50.2 | 977 | 22.0 | 45.9 | 980 | ||||||||
| 250M1 | 50.0 | 93.7 | 976 | 42.0 | 79.3 | 980 | 37.0 | 70.8 | 625.4 | 3.1 | 22.97 | 983 | 32.0 | 61.4 | 985 | 27.0 | 53.7 | 987 | ||||||||
| 250M2 | 63.0 | 116.8 | 974 | 52.0 | 96.8 | 979 | 45.0 | 83.9 | 738.8 | 3.1 | 26.39 | 982 | 39.0 | 73.1 | 985 | 33.0 | 64.2 | 987 | ||||||||
| 280S1 | 75.0 | 139.1 | 972 | 63.0 | 117 | 977 | 55.0 | 103 | 789.9 | 2.8 | 29.11 | 981 | 48.0 | 90 | 983 | 40.0 | 75.9 | 986 | ||||||||
| 280S2 | 85.0 | 155.9 | 976 | 70.0 | 129.8 | 981 | 63.0 | 116.9 | 1068.9 | 3.2 | 37.95 | 983 | 53.0 | 100.6 | 986 | 46.0 | 89.4 | 988 | ||||||||
| 280M | 100.0 | 185.5 | 975 | 85.0 | 158.7 | 979 | 75.0 | 141 | 1226 | 3.1 | 42.23 | 982 | 63.0 | 118.3 | 985 | 55.0 | 105.7 | 987 | ||||||||
| 315S | 120.0 | 217.7 | 974 | 103.0 | 210.3 | 982 | 90.0 | 165.2 | 1326.6 | 3.4 | 51.01 | 984 | 75.0 | 140.8 | 986 | 65.0 | 124.9 | 988 | ||||||||
| 315M | 155.0 | 284.3 | 967 | 125.0 | 226.8 | 982 | 110.0 | 199 | 1402.1 | 2.9 | 49.12 | 984 | 92.0 | 168.8 | 986 | 80.0 | 148.5 | 988 | ||||||||
| 750r/min | ||||||||||||||||||||||||||
| 160L | 11.0 | 24.8 | 707 | 8.5 | 19.8 | 719 | 7.5 | 18.4 | 100.1 | 2.8 | 9.32 | 723 | 6.3 | 16.2 | 728 | 5.5 | 14.6 | 730 | ||||||||
| 180L | 15.0 | 34.3 | 706 | 13.0 | 30.1 | 715 | 11.0 | 25.5 | 125.8 | 2.4 | 12.50 | 723 | 9.5 | 23.2 | 726 | 8.0 | 20.7 | 731 | ||||||||
| 200L | 22.0 | 47.9 | 718 | 17.0 | 39.2 | 726 | 15.0 | 35.4 | 258.6 | 3.1 | 20.10 | 729 | 13.0 | 32.5 | 732 | 11.0 | 30.1 | 735 | ||||||||
| 225M | 30.0 | 63.1 | 717 | 26.0 | 55.4 | 722 | 22.0 | 48.1 | 350.0 | 2.8 | 23.45 | 727 | 19.0 | 43.2 | 730 | 16.0 | 38.5 | 733 | ||||||||
| 250M1 | 42.0 | 90.4 | 718 | 36.0 | 76.6 | 722 | 30.0 | 63.3 | 401.9 | 2.8 | 31.29 | 728 | 26.0 | 59.8 | 730 | 22.0 | 53.5 | 733 | ||||||||
| 250M2 | 52.0 | 108.6 | 718 | 42.0 | 87.4 | 722 | 37.0 | 76.2 | 471.9 | 2.6 | 35.32 | 728 | 32.0 | 68.9 | 730 | 27.0 | 62.1 | 733 | ||||||||
| 280S1 | 60.0 | 119.1 | 730 | 52.0 | 104.6 | 733 | 45.0 | 92.7 | 710.5 | 3.1 | 43.23 | 735 | 39.0 | 83.6 | 737 | 33.0 | 74.6 | 739 | ||||||||
| 280M | 75.0 | 146.6 | 725 | 63.0 | 122.3 | 730 | 55.0 | 108.0 | 689.2 | 2.7 | 40.01 | 732 | 47.0 | 94.6 | 735 | 40.0 | 83.6 | 737 | ||||||||
| 315S1 | 84.0 | 161.2 | 735 | 70.0 | 137.6 | 738 | 63.0 | 126.8 | 1088.6 | 3.2 | 57.11 | 739 | 53.0 | 110.7 | 741 | 46.0 | 101.2 | 742 | ||||||||
| 315S2 | 100.0 | 192.0 | 735 | 85.0 | 167.1 | 737 | 75.0 | 151.0 | 1333.7 | 3.3 | 68.88 | 739 | 63.0 | 133.4 | 741 | 55.0 | 121.1 | 742 | ||||||||
| 315M | 125.0 | 236.5 | 733 | 100.0 | 194.0 | 737 | 90.0 | 176.8 | 1482.8 | 3.3 | 71.14 | 738 | 75.0 | 152.2 | 740 | 65.0 | 137.1 | 741 | ||||||||
| 355M | 155.0 | 294.2 | 738 | 125.0 | 243.1 | 741 | 110.0 | 219.1 | 2086.4 | 3.3 | 98.85 | 742 | 92.0 | 190.2 | 743 | 80.0 | 174.2 | 744 | ||||||||
| 355L1 | 190.0 | 356.5 | 737 | 150.0 | 284.9 | 740 | 132.0 | 256.7 | 2367.0 | 3.3 | 108.05 | 741 | 110.0 | 221.8 | 743 | 95.0 | 144.3 | 744 | ||||||||
| 355L2 | 225.0 | 422.2 | 738 | 185.0 | 351.4 | 740 | 160.0 | 311.2 | 2953.1 | 3.2 | 130.71 | 741 | 132.0 | 269.5 | 743 | 115.0 | 240.8 | 744 | ||||||||
| 400L1 | 280.0 | 425.4 | 737 | 230.0 | 432.2 | 739 | 200.0 | 384.8 | 3275.1 | 3.3 | 88.35 | 741 | 170.0 | 335.1 | 742 | 145.0 | 296.6 | 743 | ||||||||
| 400L2 | 350.0 | 657.8 | 738 | 300.0 | 570.4 | 740 | 250.0 | 492.7 | 4711.1 | 3.4 | 125.45 | 742 | 210.0 | 429.6 | 743 | 180.0 | 387.9 | 744 | ||||||||
| 600r/min | ||||||||||||||||||||||||||
| 280S | 55.0 | 115.8 | 583 | 42.0 | 570.4 | 588 | 37.0 | 83.2 | 515.5 | 2.8 | 42.79 | 589 | 32.0 | 75.0 | 591 | 27.0 | 68.0 | 592 | ||||||||
| 280M | 63.0 | 132.7 | 584 | 52.0 | 111.5 | 587 | 45.0 | 96.8 | 629.7 | 2.9 | 50.68 | 589 | 39.0 | 90.4 | 591 | 33.0 | 80.9 | 592 | ||||||||
| 315S1 | 75.0 | 152.5 | 581 | 63.0 | 131.3 | 584 | 55.0 | 116.2 | 784.6 | 2.9 | 53.88 | 586 | 47.0 | 104.6 | 588 | 40.0 | 92.7 | 590 | ||||||||
| 315S2 | 84.0 | 170.8 | 581 | 70.0 | 144.2 | 584 | 63.0 | 133.1 | 897.4 | 2.9 | 59.79 | 586 | 53.0 | 116.4 | 588 | 46.0 | 106.6 | 590 | ||||||||
| 315M | 100.0 | 203.3 | 582 | 85.0 | 173.1 | 585 | 75.0 | 158.5 | 1109.5 | 3.0 | 70.64 | 586 | 63.0 | 136.8 | 589 | 55.0 | 124.4 | 590 | ||||||||
| 355M | 132.0 | 256.2 | 588 | 100.0 | 198.9 | 592 | 90.0 | 183.4 | 1345.1 | 3.0 | 78.23 | 593 | 75.0 | 158.7 | 594 | 65.0 | 143.1 | 594 | ||||||||
| 355L1 | 160.0 | 310.6 | 588 | 125.0 | 242.8 | 591 | 110.0 | 216.2 | 1483.6 | 2.8 | 84.60 | 592 | 92.0 | 187.8 | 593 | 80.0 | 167.5 | 594 | ||||||||
| 355L2 | 185.0 | 359 | 589 | 150.0 | 294.9 | 591 | 132.0 | 262.9 | 1996.0 | 3.0 | 110.32 | 592 | 110.0 | 227.4 | 594 | 95.0 | 204.2 | 594 | ||||||||
| 400L1 | 236.0 | 458.9 | 591 | 185.0 | 364.6 | 593 | 160.0 | 327.3 | 2451.8 | 3.2 | 86.38 | 594 | 132.0 | 280.7 | 595 | 115.0 | 258.1 | 595 | ||||||||
| 400L2 | 270.0 | 531.4 | 592 | 230.0 | 458.9 | 593 | 200.0 | 409.1 | 3294.0 | 3.3 | 111.75 | 594 | 170.0 | 361.5 | 595 | 145.0 | 325.5 | 595 | ||||||||
Outline Dimensions Table for YZP Crane Motor
| Type | Installation dimensions and tolerances | |||||||||||||||||||
| A | A/21） | B | C2） | D3） | D1 | E | E1 | F | G | H | K | |||||||||
| Basic size | Limit deviation |
Basic size | Limit deviation | Basic size | Limit deviation | Basic size | Limit deviation | Basic size | Limit deviation | Basic size | Limit deviation | Basic size | Limit deviation | Basic size | Limit deviation | |||||
| 112M | 190 | 95 | 140 | 70 | ±2 | 32 | +0.018 +0.012 |
— | 80 | ±0.370 | — | — | 10 | 0 -0.036 |
27 | 112 | 0 -0.5 |
12 | +0.43 0 | |
| 132M | 216 | 108 | 178 | 89 | 38 | 33 | 132 | |||||||||||||
| 160M | 254 | 127 | 210 | 108 | ±3 | 48 | 110 | ±0.430 | 14 | 0 -0.043 |
42.5 | 160 | 15 | |||||||
| 160L | 254 | |||||||||||||||||||
| 180L | 279 | 139.5 | 279 | 121 | 55 | +0.046 0 |
M36×3 | 82 | 0 -0.54 |
19.9 | 180 | |||||||||
| 200L | 318 | 159 | 305 | 133 | 60 | M42×3 | 140 | ±0.500 | 105 | 16 | 21.4 | 200 | 19 | +0.52 0 |
||||||
| 225M | 356 | 178 | 311 | 149 | ±4 | 65 | 23.9 | 225 | ||||||||||||
| 250M | 406 | 203 | 349 | 168 | 70 | M48×3 | 18 | 25.4 | 250 | 24 | ||||||||||
| 280S | 457 | 228.5 | 368 | 190 | 85 | +0.054 0 |
M56×4 | 170 | 130 | 0 -0.63 |
20 | 0 -0.052 |
31.7 | 280 | 0 -1 |
|||||
| 280M | 419 | |||||||||||||||||||
| 315S | 508 | 254 | 406 | 216 | 95 | M64×4 | 22 | 35.2 | 315 | 28 | ||||||||||
| 315M | 457 | |||||||||||||||||||
| 355M | 610 | 305 | 560 | 254 | 110 | M80×4 | 210 | ±0.580 | 165 | 25 | 41.9 | 355 | ||||||||
| 355L | 630 | |||||||||||||||||||
| 400L | 686 | 343 | 710 | 280 | 130 | +0.063 0 |
M100×4 | 250 | 200 | 0 -0.72 | 28 | 50 | 400 | 35 | +0.62 0 |
|||||
| Type | Size | |||||||||||
| Bolt dia. | AA | AB | AC | AD | BB | BC | LB | HA | HD | HE | L | |
| 112M | M10 | 50 | 240 | 230 | 120 | 200 | 20 | 92 | 20 | 330 | 270 | 560 |
| 132M | 65 | 280 | 270 | 255 | 30 | 97 | 22 | 360 | 301 | 640 | ||
| 160M | M12 | 75 | 330 | 320 | 150 | 314 | 31 | 148 | 25 | 415 | 350 | 760 |
| 160L | ||||||||||||
| 180L | 75 | 350 | 355 | 345 | 33 | 185 | 458 | 391 | 800 | |||
| 200L | M16 | 90 | 395 | 406 | 180 | 379 | 37 | 198 | 28 | 520 | 445 | 900 |
| 225M | 90 | 435 | 450 | 405 | 30 | 211 | 560 | 485 | 930 | |||
| 250M | M20 | 95 | 490 | 500 | 210 | 455 | 53 | 230 | 30 | 620 | 535 | 1120 |
| 280S | 95 | 550 | 545 | 480 | 70 | 249 | 35 | 690 | 630 | 1190 | ||
| 280M | 530 | 1240 | ||||||||||
| 315S | 120 | 635 | 620 | 250 | 575 | 84 | 309 | 45 | 845 | 720 | 1260 | |
| 315M | 625 | 1450 | ||||||||||
| 355M | 130 | 735 | 720 | 770 | 64 | 323 | 50 | 900 | 800 | 1540 | ||
| 355L | 840 | 51 | 1680 | |||||||||
| 400L | M30 | 160 | 850 | 800 | 320 | 905 | 75 | 250 | 50 | 1150 | 925 | 1770 |
