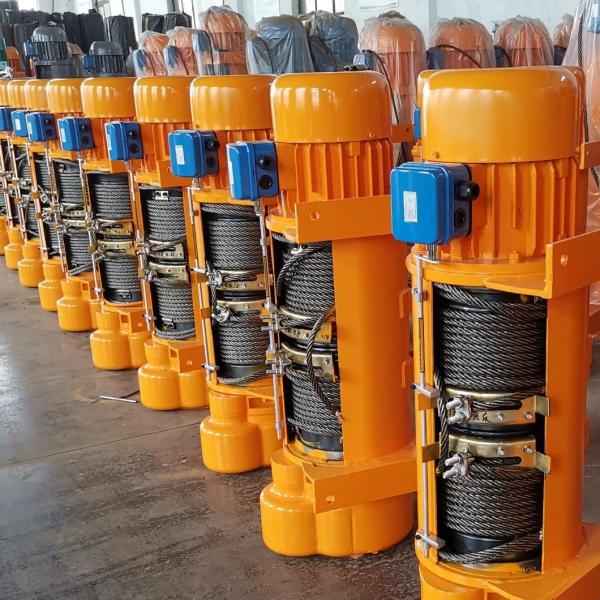

Wire Rope Electric Hoist

Wire Rope Electric Hoist Details

Models: CD, MD
Available Capacities: 0.5t, 1t, 2t, 3t, 5t, 10t, 16t, 20t, 32t
Lifting Height Range: 3m, 6m, 9m, 12m, 18m, 24m, 36m up to 100m
Color: Customizable according to your requirements

Spread the love
Product Introduction

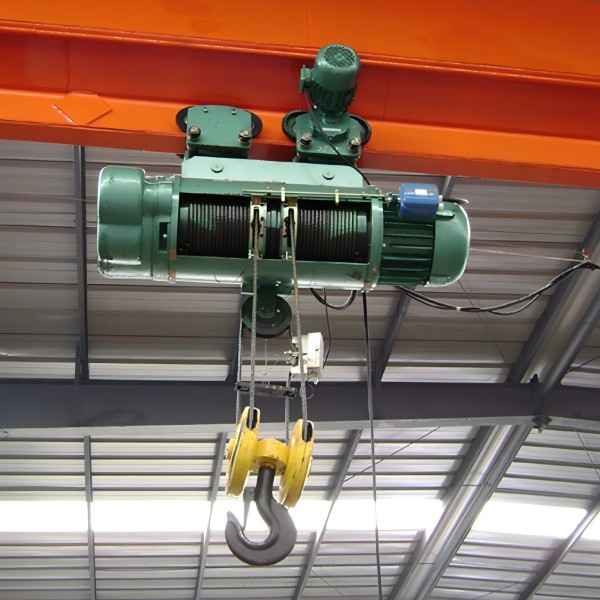

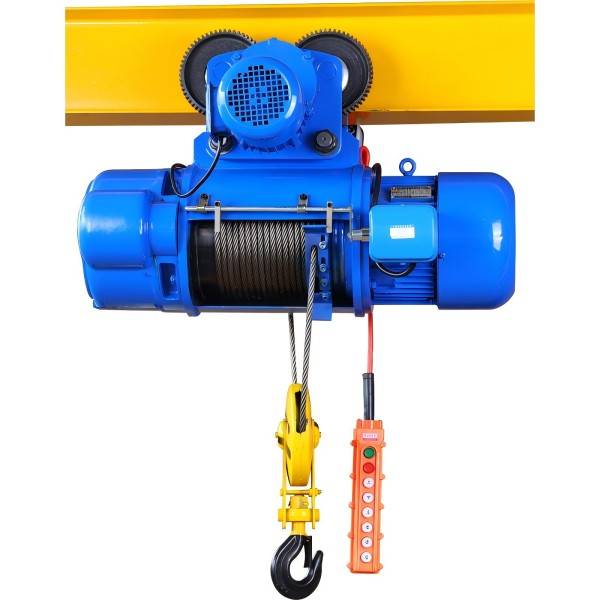

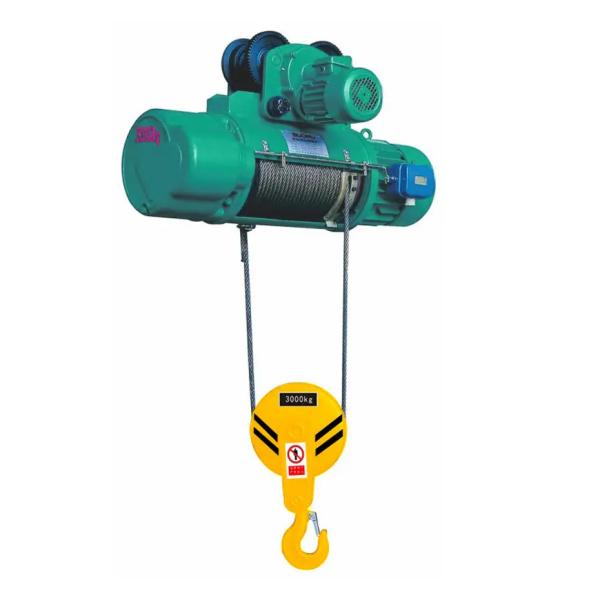

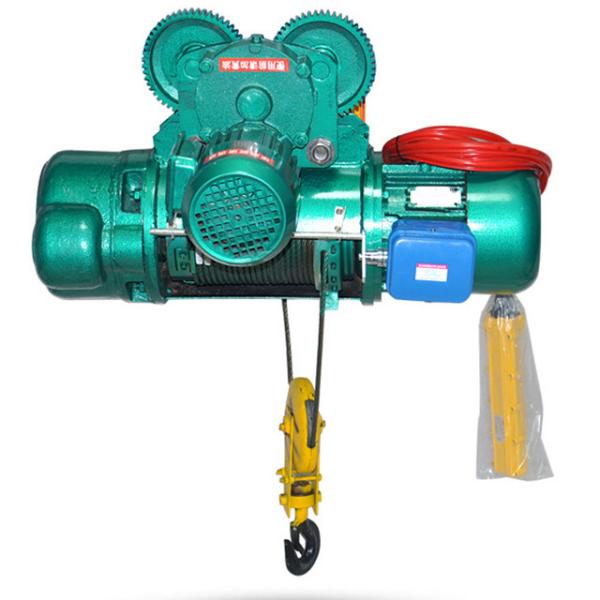

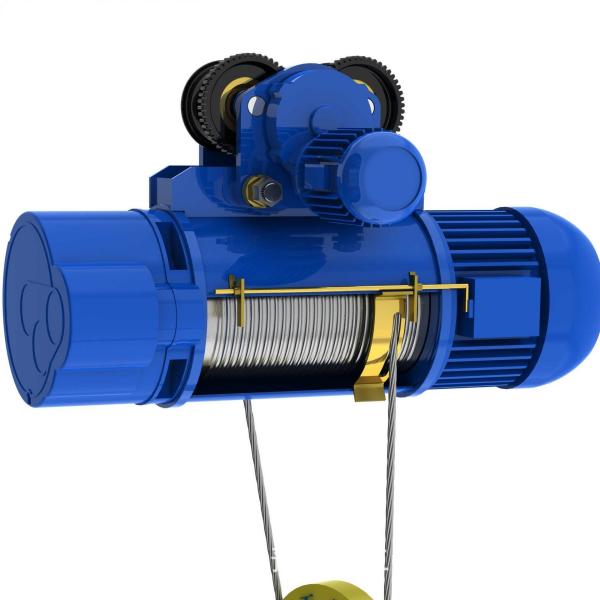

The Wire Rope Electric Hoist with single-track design is widely regarded as a popular lifting device due to its compact structure, versatile design, safety and reliability, common spare parts, strong lifting capacity, and ease of maintenance. Moreover, it can be fixed onto an I-beam for operation. This lightweight hoist is specifically designed for general tasks in warehouses, workshops, mining sites, and similar environments.

To enhance versatility, the hoist is available in two common models:

  • CD type: Features single-speed lifting.
  • MD type: Offers not only regular speed but also low-speed lifting for precise operations.
Wire Rope Electric Hoist Details

Models: CD, MD
Available Capacities: 0.5t, 1t, 2t, 3t, 5t, 10t, 16t, 20t, 32t
Lifting Height Range: 3m, 6m, 9m, 12m, 18m, 24m, 36m up to 100m
Color: Customizable according to your requirements
Included Features:

  • Overload limiter
  • Travel limit switch
  • Emergency stop system
Application Scope and Working Conditions

This product is suitable for environments without explosion hazards, corrosive media, or heavy contamination. It operates effectively within a temperature range of -20°C to 40°C and a humidity level of ≤85%.

By combining reliable performance with flexible customization options, this hoist serves as an excellent choice for diverse industrial needs.

Electric Hoist Parameter Table
CD (MD) type wire rope electric hoist (running type)
Lifting capacity（t） 0.5 1 2 3 5 10 16
Lifting height （m） 6-18 6-30 6-30 6-30 6-30 6-30 9-24
Rope winding method 1/2 1/2 1/2 1/2 1/2 2/4 1/4
Lifting speed（m/min） 8（0.8/8） 8（0.8/8） 8（0.8/8） 8（0.8/8） 8（0.8/8） 7（0.7/7） 3.5（0.35/3.5）
Lifting power（kw） 0.8 1.5 3.0 4.5 7.5 13 13
Running speed（m/min） 20 20 20 20 20 20 20
Running power（kw） 0.2 0.2 0.4 0.4 0.8 0.8*2 0.8*2
Operation mode Handle/remote control
work level M3
power supply 380V 50HZ/440V 60HZ



HC (HM) type wire rope electric hoist (heavy duty)
Lifting capacity（t） 16 20 25 32 40 50 100
Lifting height （m） 9-30 9-30 9-30 9-30 9-24 9-24 9-24
Rope winding method 1/4          1/2 1/4 1/4 1/4 1/6 1/6 1/6
Lifting speed（m/min） 3.5（0.35/3.5）    6/0.6 4(0.4/4) 3（0.3/3） 3（0.3/3） 2(0.2/2) 2(0.2/2) 2(0.2/2)
Lifting power（kw） 18.5 18.5 18.5 18.5 18.5 18.5 18.5*2
Running speed（m/min） 20 20 20 20 20 Fixed Fixed
Running power（kw） 0.8*2        1.5*2 0.8*4 0.8*4 1.5*4 1.5*4
Operation mode Handle/remote control
work level M3
power supply 380V 50HZ/440V 60HZ
