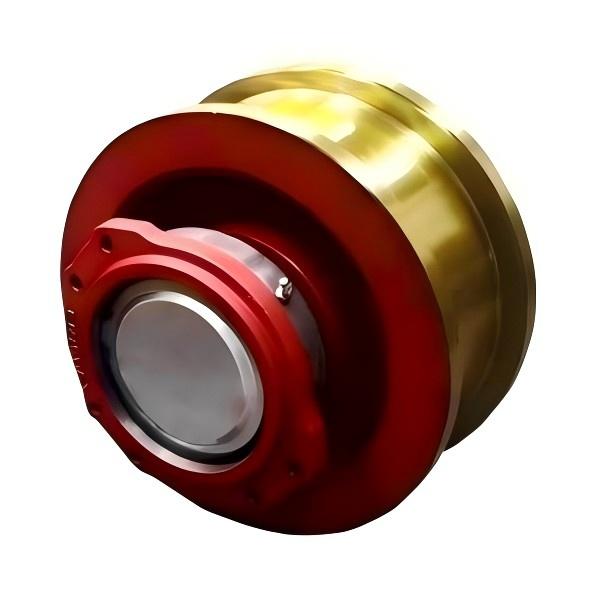

FEM standard crane wheel
FEM Standard Crane Wheel Parameters:

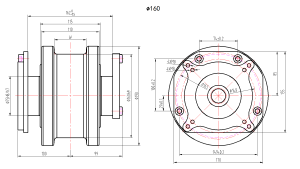

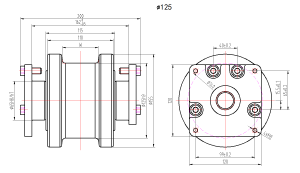

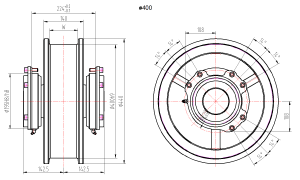

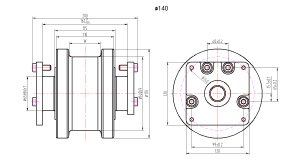

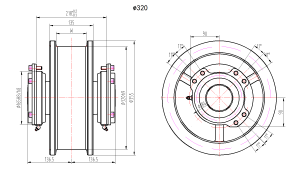

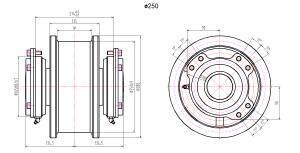

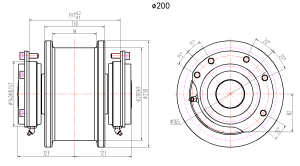

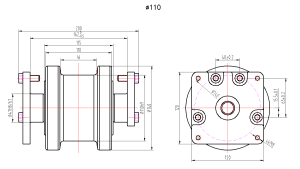

- Specifications: Φ110, Φ125, Φ140, Φ160, Φ200, Φ250, Φ320, Φ400, Φ500, Φ630

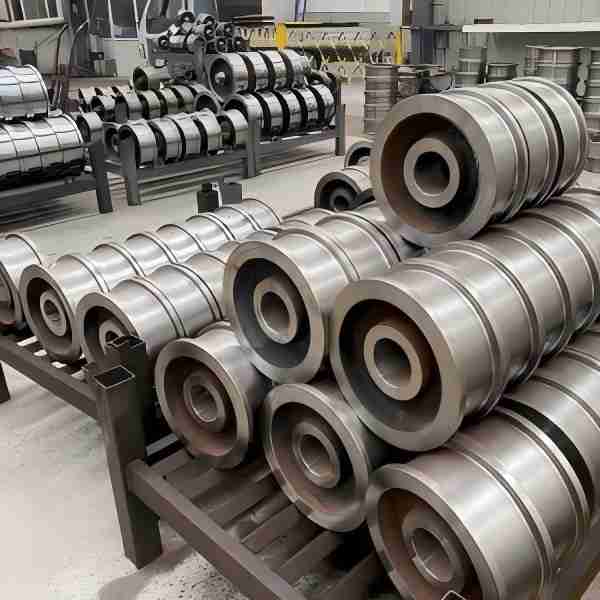

- Wheel Material: QT700, 40Cr Forged

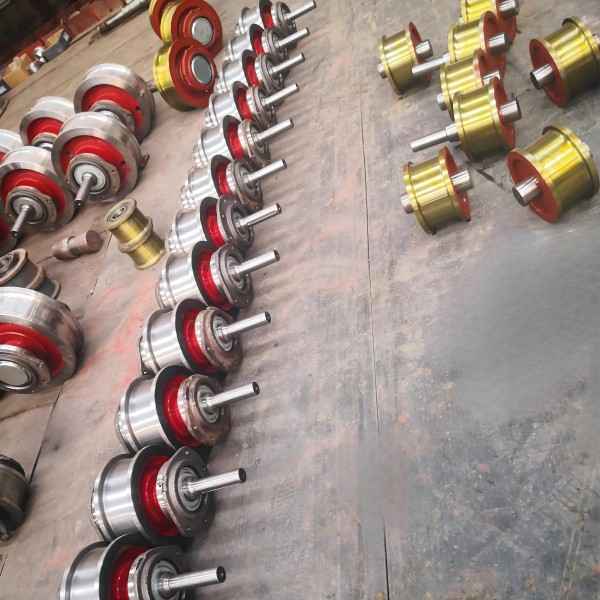

- Wheel Type: Double-flange, Single-flange, No-flange

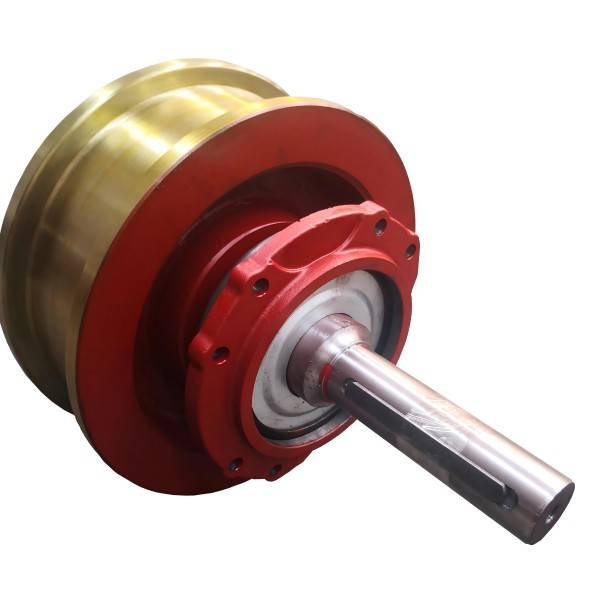

- Wheel Connection Type: Internal spline, Cylindrical shaft
- Wheel Groove Width: Determined based on the track model
- Custom Manufacturing: Custom-made based on provided drawings, with dimensions as per customer specifications

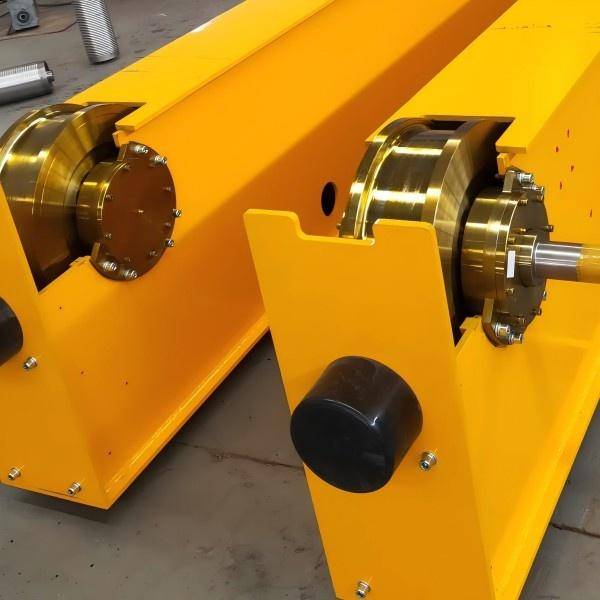

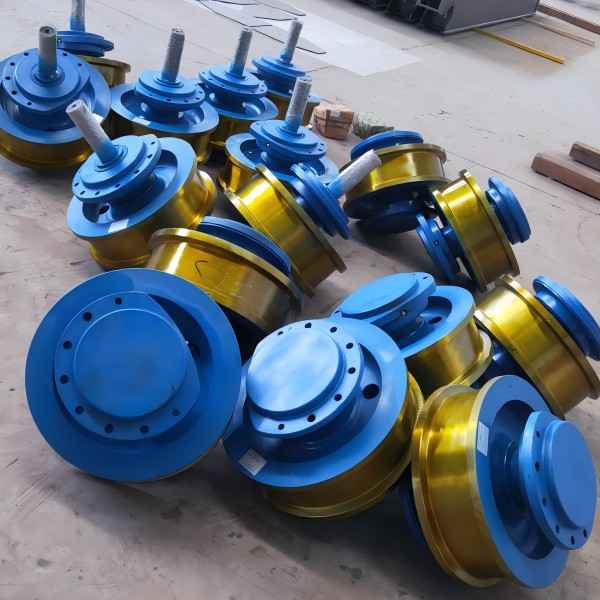

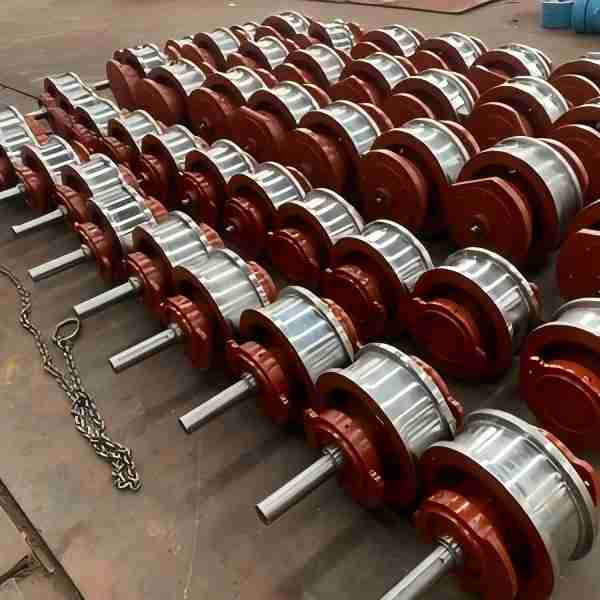

The FEM Standard Crane Wheel set, made from high-strength ductile iron QT700, boasts a compact structure, fewer components, and easy assembly. Designed with modularity in mind, this wheel set is supplied as a complete package and is available in diameters of 110, 125, 140, 160, 200, 250, 320, 400, 500, and 630. Additionally, the FEM Standard Crane Wheel set offers the following benefits:
Compact Structure: The wheel set is composed of four key components—wheel shafts, wheel plates, bearing boxes, and bearings—ensuring a compact and efficient design with high precision during assembly.
Lightweight and Small Volume: Its lightweight and compact design not only makes the wheel set easier to install and transport but also enhances overall user convenience.
Direct Compatibility with Three-in-One Reducers: The design allows direct compatibility with three-in-one reducers, eliminating the need for couplings and reducing assembly steps, which improves work efficiency.
Smooth Operation with Low Noise: Due to its compact structure and high assembly precision, the wheel set operates with minimal noise, creating a quieter and more comfortable working environment.
Superior Material Quality: The use of high-strength ductile iron enhances the durability and load-bearing capacity of the wheels, making the wheel set reliable for long-term use.
Multiple Diameter Options: Available in a variety of diameters, the wheel set meets the diverse needs of customers, offering flexibility for different applications.
Moreover, the FEM Standard Crane Wheel also supports custom solutions, such as forged steel wheels (e.g., 40Cr wheels), to meet specific operational requirements. Compared to traditional crane wheel sets, the European-style crane wheel set stands out in terms of material, structure, and design innovations, ultimately aiming to deliver more efficient and reliable service.
