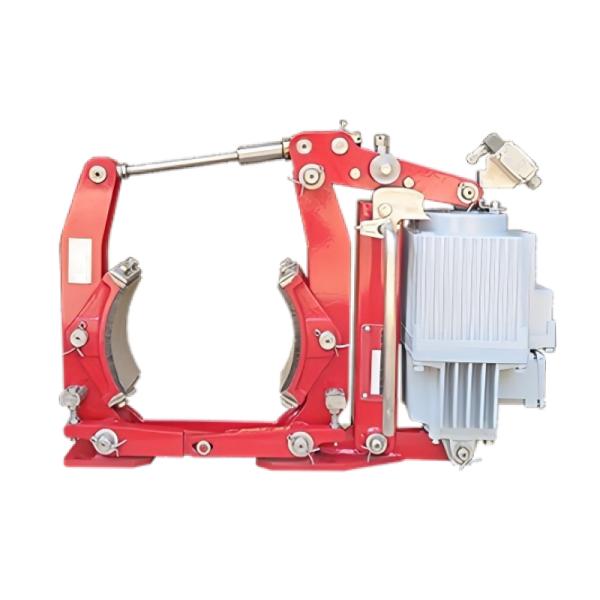

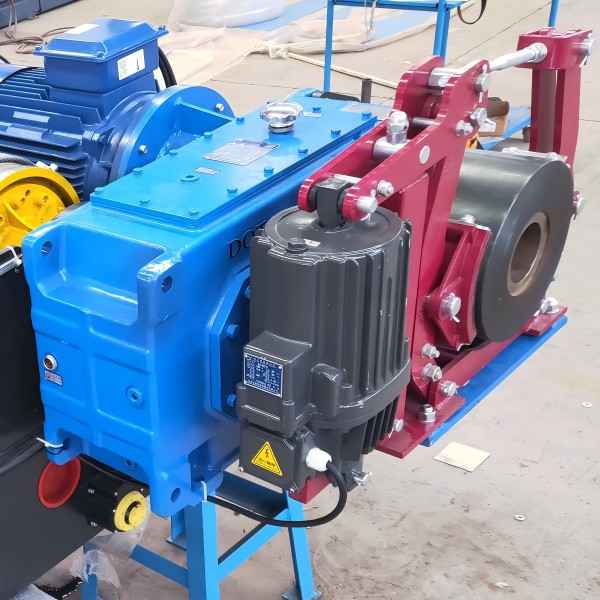

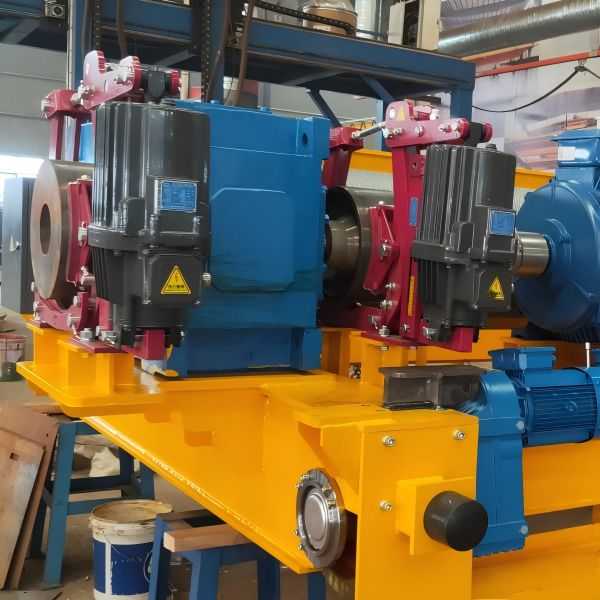

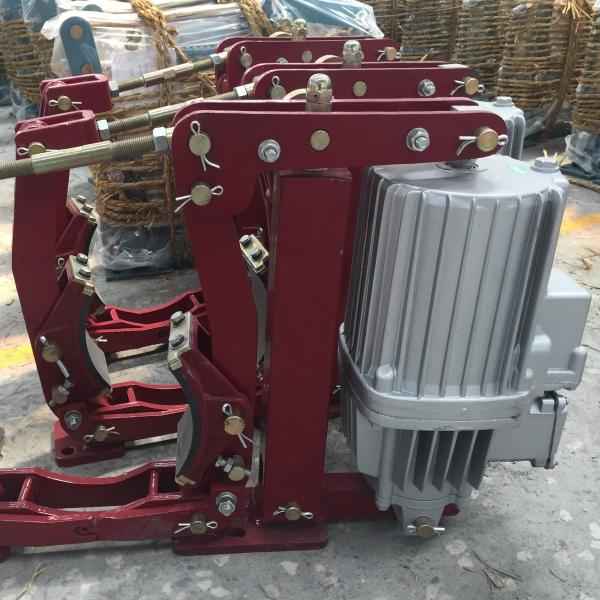

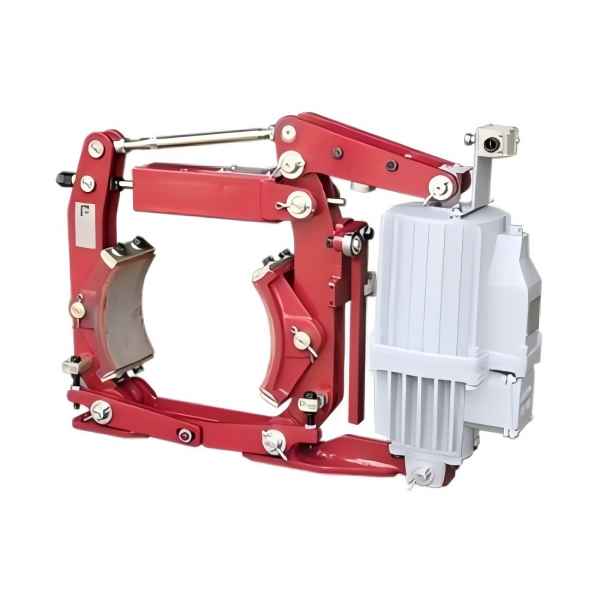

Crane drum brakes

YWZ4 Crane Drum Brakes Models:

  • Product Models: YWZ4-160/22, YWZ4-200/22 (30), YWZ4-250/30 (50), YWZ4-300/30 (50, 80), YWZ4-315/30 (50, 80), YWZ4-400/50 (80, 125), YWZ4-500/80 (125, 200), YWZ4-630/125 (200, 300), YWZ4-710/200 (300), YWZ4-8000/300
  • Brake Wheel Diameter (mm): 160, 200, 250, 300, 315, 400, 500, 560, 630, 710, 800
  • Braking Torque (Nm): 80~12500
Spread the love

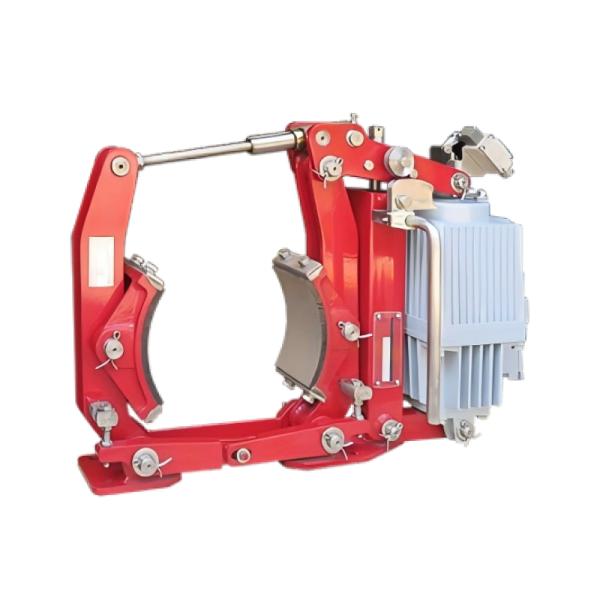

Electric Hydraulic Drum Brakes

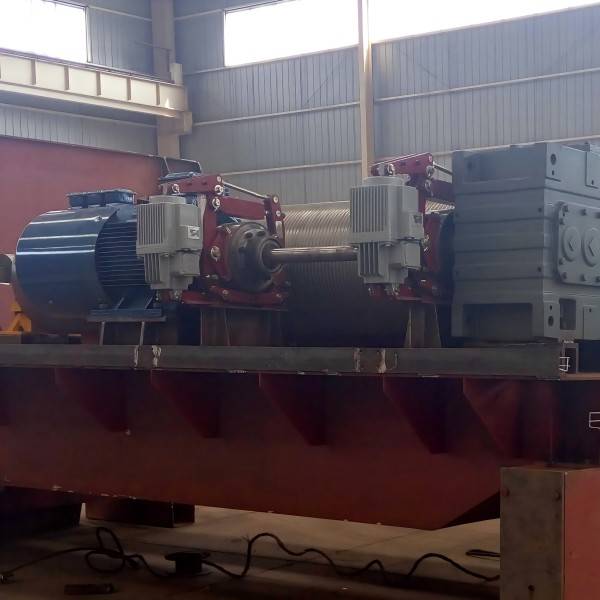

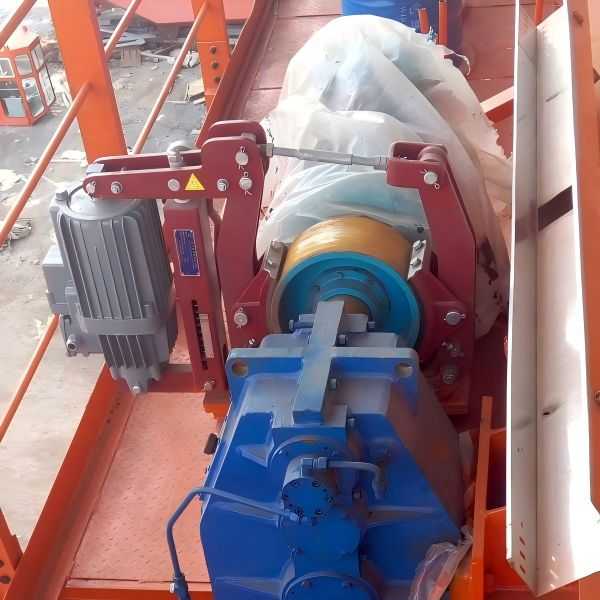

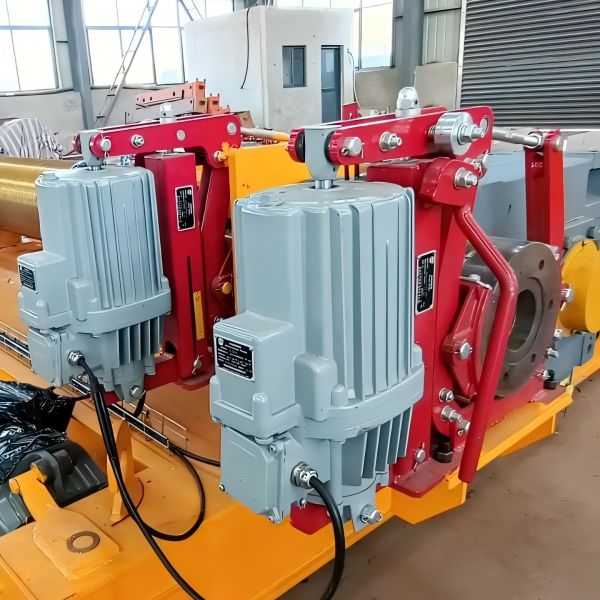

The YWZ4 Crane drum brakes are widely used for deceleration and parking (holding) braking in various lifting and transport mechanisms, port loading and unloading, metallurgical equipment, mining machinery, and construction machinery.

Main Features
  • The interlocking equal clearance device and automatic alignment device for the brake shoes ensure that the clearance on both sides of the brake shoes remains equal without adjustment, completely preventing one side’s brake pad from sticking to the brake wheel due to uneven clearance.
  • The brake pad uses a clamped integrally molded structure, making replacement very convenient and fast. It is available in various materials, including semi-metal (asbestos-free) hard and semi-hard, as well as soft (asbestos-free) options for users to choose from.
  • All main pivot points are equipped with self-lubricating bearings, ensuring high transmission efficiency and extended service life.
  • The brake spring is arranged inside a square tube and equipped with a scale, allowing users to easily read the braking torque value, eliminating the hassle of measurement and calculation.
  • The matched series of thrusters are highly responsive and durable.
Operating Conditions
  • Ambient Temperature: -20℃ to +50℃
  • Relative Humidity: ≤90%
  • Voltage Level: Three-phase AC 380V/50Hz
  • Duty Cycle: Continuous (S1) and Intermittent (S3-60%, operation frequency ≤1200 times/hour)
Crane Drum Brakes Additional Devices
  • Manual release device.
  • Brake lining wear limit switch, which signals when the brake lining reaches its wear limit (Note: applicable to brakes with an automatic compensation device).
  • Release (brake open) limit switch, indicating whether the brake is released correctly.
  • With a thruster equipped with a lowering delay valve, the brake can achieve delayed closure to meet specific requirements.

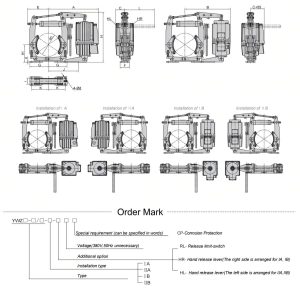

YWZ4 Crane Drum Brake Technical Specifications and Installation Dimensions

Brake type Thruster type Brake torque
(N.m)		 Dimensions (mm) Weight
(kg)
D h1 k i d n b F G J E H A B L C
A B A B
YWZ4-160/22 YTD220-50 80~160 160 132 130 55 14 6 65 90 150 210 165 390 415 380 80 120 200 80 25
YWZ4-200/22 YTD220-50 100~200 200 160 145 55 14 8 80 90 165 265 195 470 440 405 80 120 260 80 38
YWZ4-200/30 YTD300-50 140~280 245 39
YWZ4-250/30 YTD300-50 160~315 250 190 180 65 18 10 100 100 200 275 225 500 490 455 80 120 260 80 47
YWZ4-250/50 YTD500-60 250~500 550 550 490 97 157 320 97 61
YWZ4-300/30 YTD300-50 160~315 300 225 220 80 18 10 125 110 245 358 275 585 550 510 80 120 260 80 74
YWZ4-300/50 YTD500-60 250~500 590 530 97 157 340 97 86
YWZ4-300/80 YTD800-60 500~1000 88
YWZ4-315/30 YTD300-50 160~315 315 225 220 80 18 10 125 110 245 358 275 585 570 510 80 120 260 80 74
YWZ4-315/50 YTD500-60 250~500 590 530 97 157 340 97 86
YWZ4-315/80 YTD800-60 500~1000 88
YWZ4-400/50 YTD500-60 315~630 400 280 270 100 22 12 160 140 300 420 350 705 625 565 97 157 450 97 108
YWZ4-400/80 YTD800-60 630~1250 110
YWZ4-400/125 YTD1250-60 900~1800 770 610 580 120 150 120 133
YWZ4-500/80 YTD800-60 800~1600 500 335 325 130 22 16 200 180 365 484 395 835 740 680 97 157 450 97 202
YWZ4-500/125 YTD1250-60 1125~2250 410 850 730 700 120 150 120 212
YWZ4-500/200 YTD2000-60 1600~3150 212
YWZ4-630/125 YTD1250-120 1400~2800 630 425 400 170 27 20 250 220 450 590 505 1025 840 810 120 150 450 120 309
YWZ4-630/200 YTD2000-120 2250~4500 310
YWZ4-630/300 YTD3000-120 3550~7100 315
YWZ4-710/200 YTD2000-120 2500~5000 710 475 450 190 27 22 280 240 500 705 565 1170 1050 1020 120 150 450 120 455
YWZ4-710/300 YTD3000-120 4000~8000 460
YWZ4-800/300 YTD3000-120 6300~12500 800 530 520 210 27 28 320 280 570 860 710 1410 1085 1060 120 150 450 120 652
