Container spreader

Container Spreader Overview

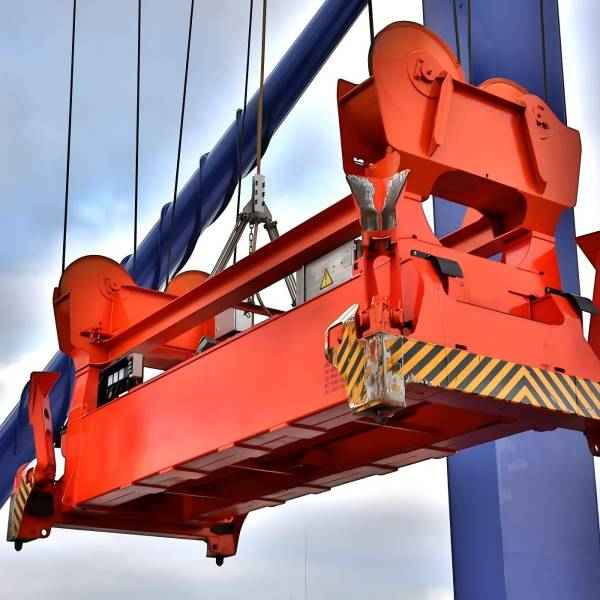

A container spreader is a large, specialized tool designed for loading, unloading, and transferring containers. Widely used in freight storage, waterborne ports, and terminals, it is characterized by high reliability, smooth operation, and excellent efficiency, making it an essential auxiliary device for lifting equipment.

Types of Container Spreaders

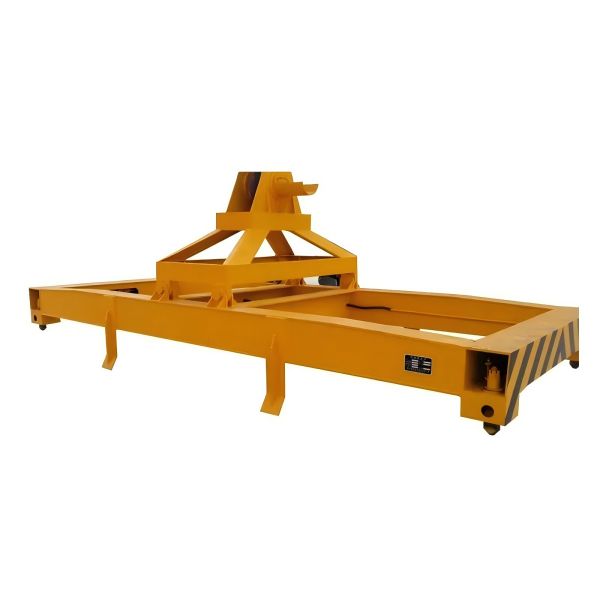

• Fixed Spreader:
  • Features: Simple structure and lightweight.
  • Limitation: Suitable only for one specific container size.
  • Applications: Commonly used with multi-purpose gantry cranes and general gantry cranes.
• Master-Slave Spreader (Combined Spreader):
  • Structure: Composed of two spreaders (upper and lower) working in combination.
  • Advantages: Convenient to use.
  • Limitation: Relatively heavy in weight.
• Mother-Daughter Spreader (Convertible Spreader):
  • Features: Equipped with a dedicated power system on the specialized beam.
  • Advantages: Lightweight design.
  • Limitation: Requires more time for spreader replacement.

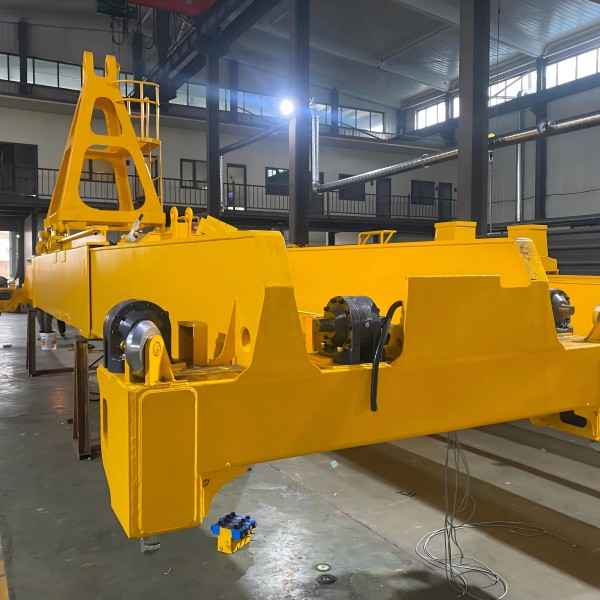

• Telescopic Spreader:
  • Mechanism: Uses hydraulic transmission to drive telescopic chains or cylinders.
  • Advantages: Easy length adjustment, flexible operation, strong versatility, and high productivity.

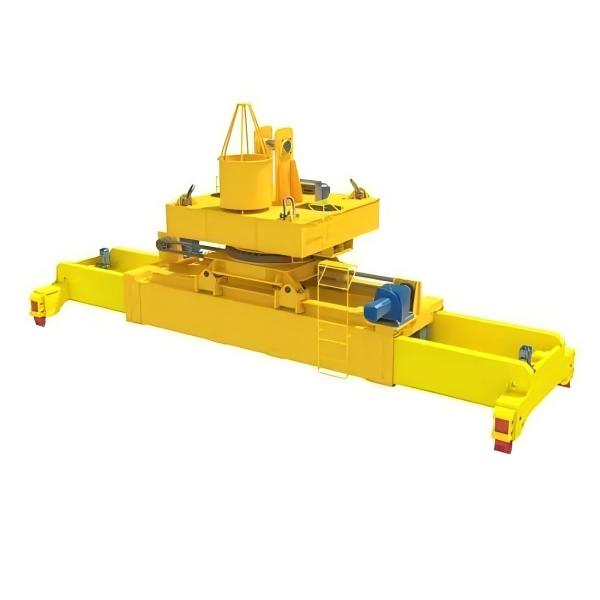

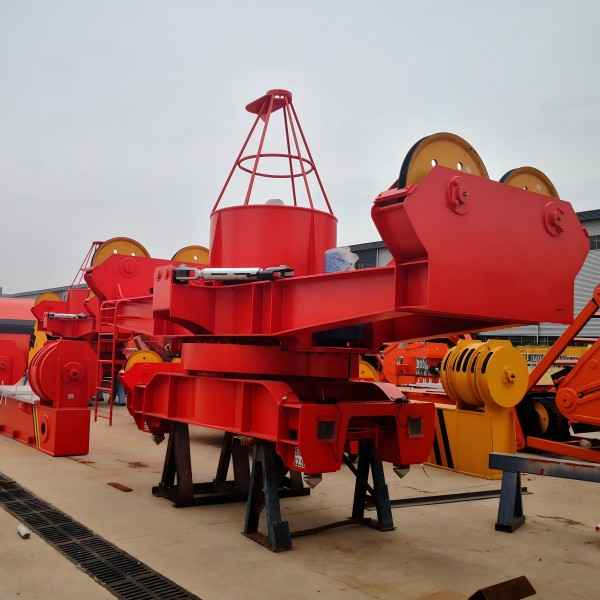

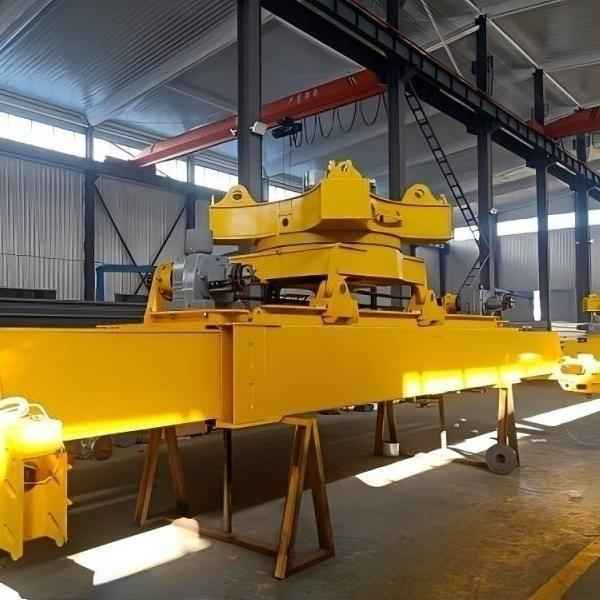

• Rotating Spreader:
  • Features: Capable of planar rotational motion.
  • Applications: Suitable for container handling operations requiring rotational capabilities.

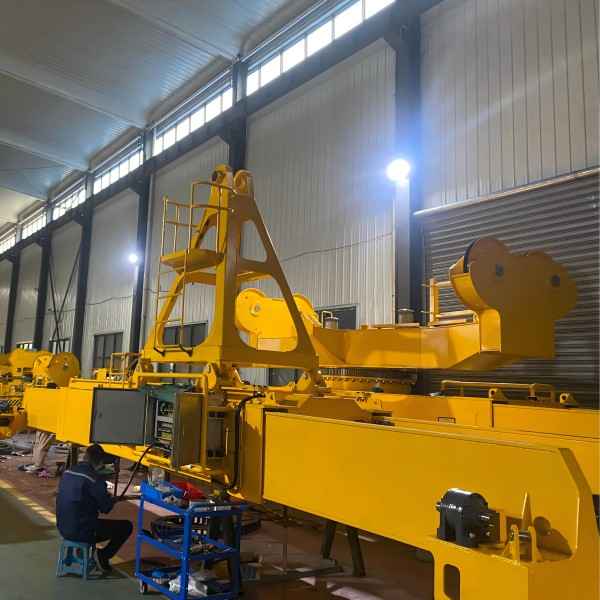

Structural Characteristics of Container Spreaders

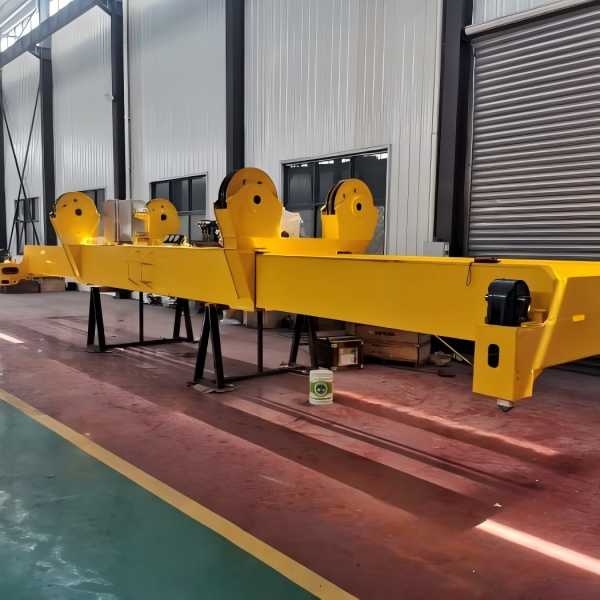

• High-Strength Frame:
  • The main frame is constructed from I-beams with reinforced critical areas for enhanced load capacity and rigidity while maintaining a lightweight design.
• Double-Position Locking for Twistlocks:
  • Ensures the container remains secure during lifting, enhancing safety.
• Four-Link Mechanism for Lateral Drive:
  • Provides smoother and more accurate twistlock rotation, improving safety and operational precision.
• Rounded Corner Design:
  • Prevents damage to containers during operation.
• Lock/Unlock Indicator Panels:
  • Enables operators to easily identify the lock/unlock status for enhanced operational safety.

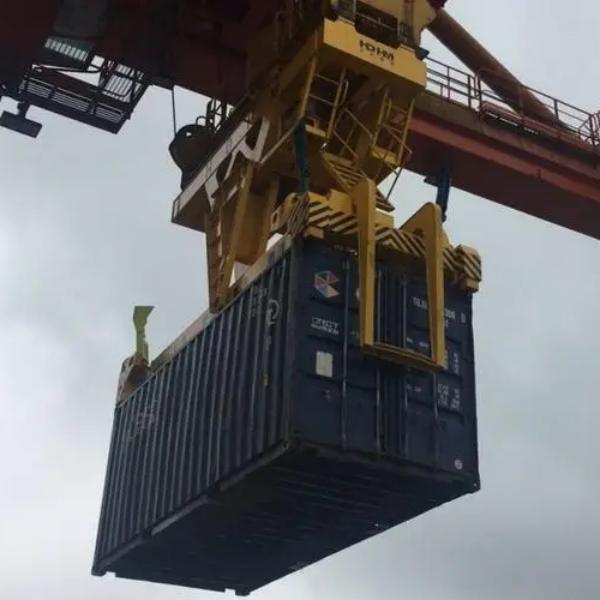

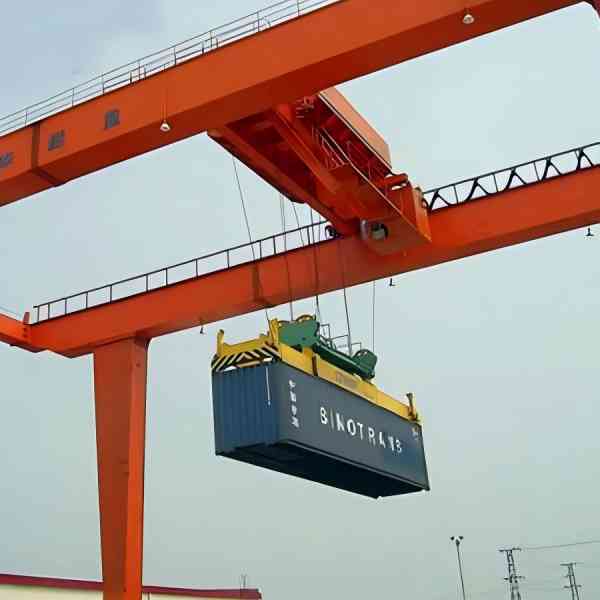

Applications of Container Spreaders

Container spreaders are specifically designed to meet the demands of efficient, safe container handling. They can be integrated with various types of cranes, such as:

• Quayside cranes,
• Rubber-tired gantry cranes (RTGs),
• Rail-mounted gantry cranes (RMGs),
• Overhead cranes, and
• Portal cranes.

This versatility allows container spreaders to adapt to diverse operational scenarios and requirements.
