The Role and Selection Criteria of Brake Wheel Coupling in Cranes
1. Introduction
In crane systems, the stability and safety of the transmission mechanism play a crucial role. The brake wheel coupling serves as a key component that connects the drive system to the braking system. By ensuring efficient torque transmission and reliable braking, it significantly enhances crane performance. This article explores the role of brake wheel couplings, their common types, and the essential factors to consider when selecting one.
2. Functions of Brake Wheel Coupling
2.1 Transmitting Torque
Brake wheel couplings efficiently transfer power from the motor or gearbox to the crane’s movement or hoisting mechanism. To ensure durability and performance, manufacturers design these couplings to withstand high loads and continuous operation.

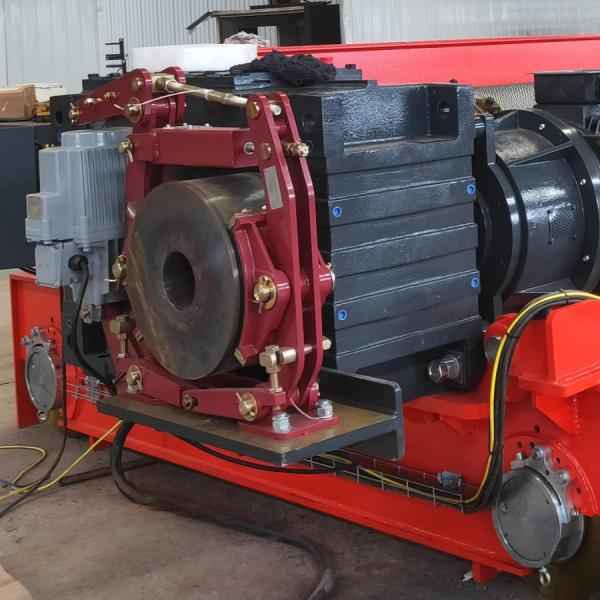

2.2 Assisting in Braking
By working in tandem with the braking system, brake wheel couplings enable cranes to decelerate or stop safely. Since emergency stops are crucial in heavy-duty operations, a well-functioning coupling prevents uncontrolled movements and enhances overall safety.
2.3 Absorbing Shock and Vibration
During crane operations, sudden loads and vibrations can damage mechanical components. Fortunately, brake wheel couplings absorb these shocks, reducing wear and tear. Furthermore, flexible couplings compensate for minor misalignments, ensuring smooth operation and extending the crane’s lifespan.
3. Types of Brake Wheel Couplings
Crane applications require different coupling types based on their operational needs. The most common types include:
- Rigid Couplings – These provide a solid connection but do not accommodate misalignment or absorb vibrations.

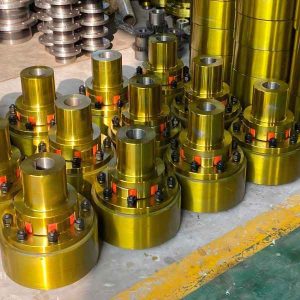

- Flexible Couplings – Designed with elastic components, these couplings absorb shocks and vibrations, making them ideal for dynamic loads.
- Disc Couplings – By utilizing metal discs for torque transmission, these couplings offer high-speed performance and compensate for minor misalignments.

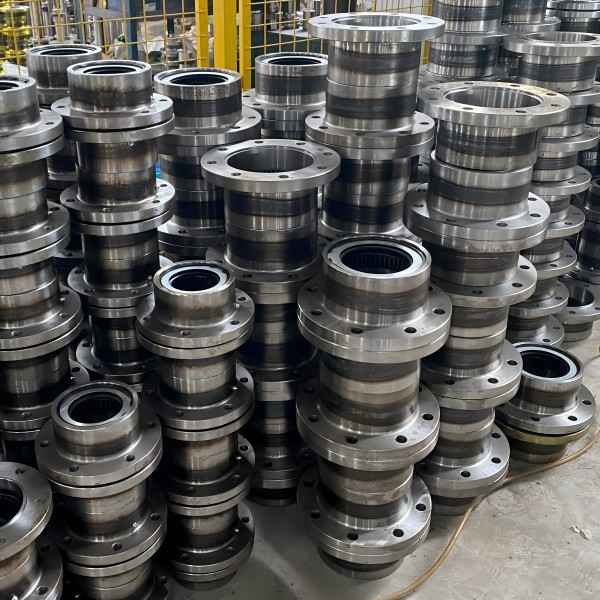

- Gear Couplings – With high torque capacity, these couplings suit heavy-duty cranes but require precise alignment during installation.
4. Selection Criteria for Brake Wheel Coupling
4.1 Load Capacity
When choosing a brake wheel coupling, engineers must calculate the crane’s rated load, torque requirements, and operating frequency. Selecting an appropriately rated coupling prevents premature failure and enhances reliability.
4.2 Environmental Conditions
Since cranes often operate in challenging environments, couplings must withstand extreme temperatures, humidity, dust, and corrosion. In industries like ports and chemical plants, corrosion-resistant materials ensure longevity.
4.3 Structure and Installation
Crane operators should select couplings that allow easy assembly and disassembly. A well-designed coupling minimizes downtime during maintenance and improves overall efficiency.
4.4 Safety and Durability
High-quality brake wheel couplings must comply with industry safety standards, such as ISO, DIN, or GB regulations. Choosing certified components ensures operational safety and reduces the risk of mechanical failures.
5. Conclusion
Brake wheel couplings play an essential role in crane power transmission and braking systems. By selecting the right coupling type and considering factors such as load capacity, environmental resistance, and installation convenience, engineers can optimize crane performance. Ultimately, a well-chosen coupling enhances efficiency, reduces maintenance costs, and ensures safe crane operation.
